Performance Meets Compatibility

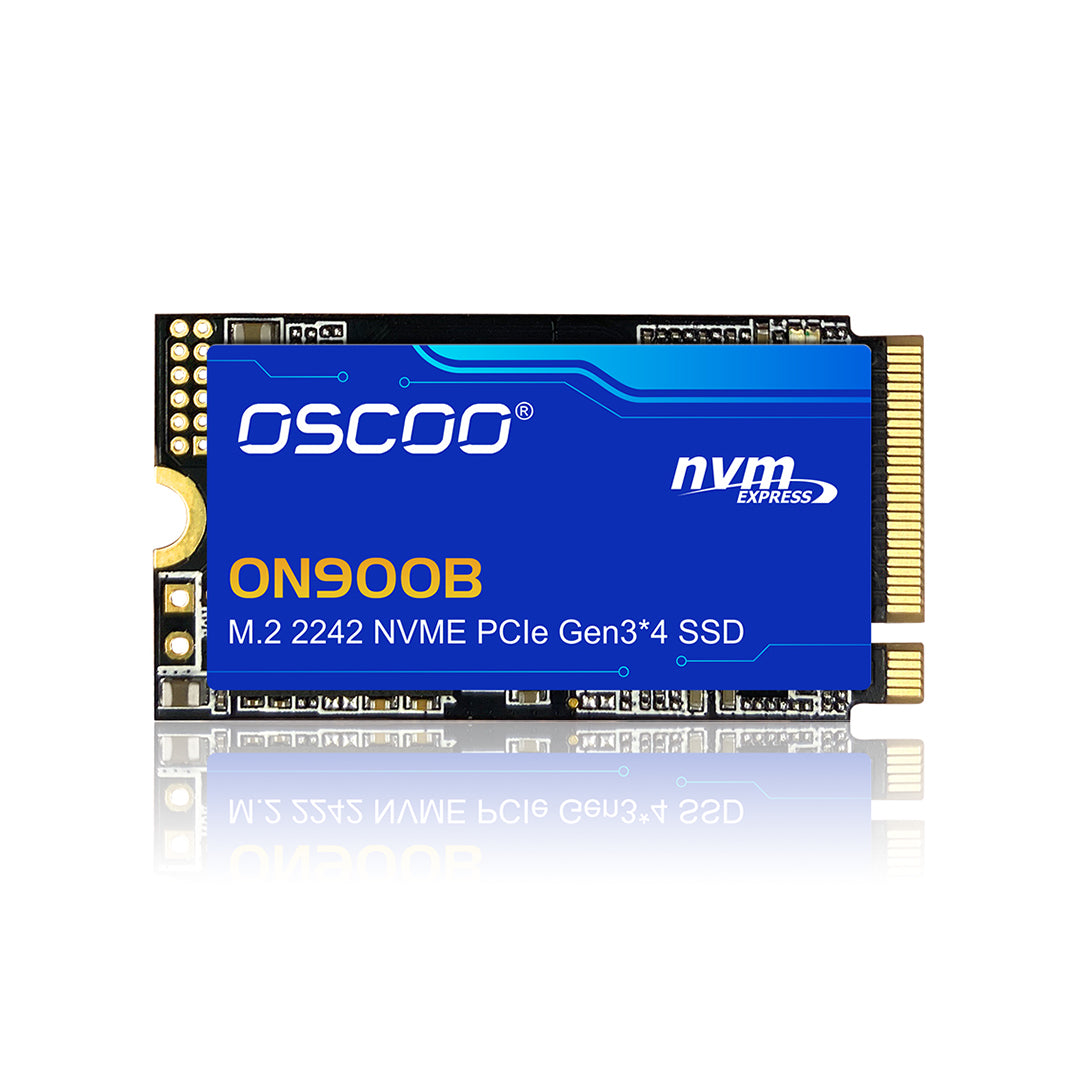

OSCOO ON900B M.2 NVMe PCIe Gen3.0*4 2242 SSD delivers next-level performance using the SMI controller and 3D NAND Flash. Upgrade the storage andreliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 2,100MB/s read and 1800MB/s write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds.
Specifications
Model
ON900B
Product Dimensions
42 × 22 × 3.5mm (1.65" × 0.87" × 0.14")
Read Speed
Up to 2100MB/s
Write Speed
Up to 1800MB/s
Interface Protocol
NVMe PCIe Gen3.0×4
Function Support
TRIM, NCQ, S.M.A.R.T
Support System
Windows 10/11, Linux
Operation Temperature
0~70°C
Storage Temperature
-40~85 °C
Form Factor
M.2 2242
Dram Cache
No
Heatsink
No
Product net weight
7.5g
Capacities
512GB, 1TB, 2TB
NAND
3D NAND Flash
TBW (Endurance)
512GB: 325TBW
1TB: 650TBW
2TB: 1300TBW
Warranty
3 years
5-10 Business Days
30-Day Return Policy
Secure Payment
3 Years Warranty
Frequently Asked Questions
This resource is crafted to help you find information easily and efficiently.
What is the difference between M.2 2242 and M.2 2280 SSDs?
The numbers refer to the physical dimensions - 2242 means 22mm wide × 42mm long, while 2280 is 22mm wide × 80mm long. The ON900B's compact 2242 form factor is ideal for space-constrained devices like ultrabooks, tablets, and mini PCs. Most M.2 2280 slots can accommodate 2242 drives using the mounting screw at the 42mm position.
Will this SSD work in my laptop/device?
The ON900B is compatible with any device that has an M.2 slot supporting:
- NVMe protocol (PCIe interface)
- 2242 form factor (or larger slots like 2260/2280 with adjustable mounting)
- PCIe Gen 3.0 or newer
Common compatible devices include modern laptops, mini PCs, tablets, and some gaming consoles. Check your device specifications to confirm M.2 NVMe support.
Do I need a heatsink for this SSD?
The ON900B features a low-profile graphene aluminum heat spreader for thermal management. For most laptop and standard desktop use, additional cooling is not required. However, if you're running sustained heavy workloads or your device has limited airflow, an additional heatsink may help maintain optimal performance.
What speeds can I expect in real-world use?
The ON900B delivers up to 2,100MB/s read and 1,800MB/s write speeds under optimal conditions. Actual performance depends on:
- Your system's PCIe generation (PCIe 3.0 x4 required for maximum speed)
- Available PCIe lanes
- System configuration and workload
- Drive capacity (larger capacities typically perform better)
You'll notice significantly faster boot times, application loading, and file transfers compared to SATA SSDs.
How long will this SSD last?
The ON900B comes with a 3-year warranty and industry-leading endurance ratings:
- 256GB: 142 TBW (Terabytes Written)
- 512GB: 284 TBW
- 1TB: 568 TBW
- 2TB: 650 TBW
For typical consumer use (20-40GB written per day), even the 256GB model would last 10+ years before reaching its TBW limit.
Is this SSD compatible with PCIe 4.0 or 5.0 systems?
Yes! The ON900B is backward and forward compatible. It will work in PCIe 4.0 and 5.0 slots, operating at PCIe 3.0 speeds. While you won't get PCIe 4.0/5.0 speeds, the drive will function perfectly and still deliver excellent performance for most applications.
