Your handheld gaming PC shipped with 256GB or 512GB of storage. That sounded fine — until you installed three AAA games and ran out of space.

A single copy of GTA 6 takes over 150GB. Elden Ring, Cyberpunk 2077, and Baldur's Gate 3 each demand 50–100GB. Add shader caches, updates, and a few indie games, and you're juggling installs every week.

MicroSD cards help, but they're slow — game load times can double compared to an internal NVMe SSD. And you can't install your operating system on one.

The real fix is upgrading your internal SSD. The good news: most handheld gaming PCs use the same standard M.2 2230 SSD, and swapping one takes less than 30 minutes. The better news: upgrading your storage costs a fraction of buying the higher-capacity model — and gives your device a longer, more useful life.

This guide covers everything: which SSD fits which device, what specs actually matter, a step-by-step upgrade walkthrough, and real benchmark data from our own testing.

Which Handheld Uses Which SSD?

Not all handhelds are created equal when it comes to upgradability. Before you buy anything, check what your device actually needs.

Here's the full compatibility breakdown:

Device	SSD Size	PCIe Gen	Single-Sided Required?	Upgrade Difficulty
Steam Deck LCD	M.2 2230	Gen 3	Yes	Easy (★★☆☆☆)
Steam Deck OLED	M.2 2230	Gen 4	Yes	Easy (★★☆☆☆)
ASUS ROG Ally	M.2 2230	Gen 4	Yes	Easy (★★☆☆☆)
ASUS ROG Ally X	M.2 2230	Gen 4	Yes	Easy (★★☆☆☆)
ASUS ROG Xbox Ally	M.2 2230	Gen 4	Yes	Easy (★★☆☆☆)
Lenovo Legion Go	M.2 2230	Gen 4	Yes	Easy (★★☆☆☆)
Lenovo Legion Go S	M.2 2230	Gen 4	Yes	Easy (★★☆☆☆)
Lenovo Legion Go 2	M.2 2230	Gen 4	Yes	Hard (★★★★☆)
MSI Claw	M.2 2230	Gen 4	Yes	Moderate (★★★☆☆)
Microsoft Surface Pro 9/10/11	M.2 2230	Gen 4	Yes	Moderate (★★★☆☆)

Key takeaways:

Every device on this list uses the M.2 2230 form factor — that's the short 30mm version, not the standard 2280 used in laptops and desktops. If you accidentally buy a 2280, it physically will not fit. It will hit the battery or the fan.

The Steam Deck LCD has a PCIe Gen 3 slot. A Gen 4 SSD will work perfectly — it's backward compatible — but it'll run at Gen 3 speeds. The Steam Deck OLED and all other devices listed above run at Gen 4 speeds.

The Legion Go 2 is the outlier. Lenovo placed the SSD under the fan assembly, which is secured with a thermal plate that's partially glued in place. It's doable, but significantly more difficult than the Steam Deck or ROG Ally, where the SSD is directly accessible after removing the back cover and a shield.

Every device on this list requires a single-sided SSD — meaning all the NAND flash chips are on one side of the circuit board. Double-sided drives are physically too thick and won't seat properly in the slot.

What to Look for in a 2230 SSD for Your Handheld

Not every 2230 NVMe drive is a good fit for a handheld gaming PC. Here's what actually matters — and what doesn't.

Form Factor: 2230, Single-Sided, Non-Negotiable

This is the one thing you cannot compromise on. The SSD must be M.2 2230 (22mm wide × 30mm long) and single-sided. If a listing doesn't explicitly say "single-sided," check the product photos or contact the seller before buying.

PCIe Generation: Gen 4 Is the Sweet Spot

PCIe Gen 4 drives offer the best balance of speed and value in 2026. Gen 3 drives are cheaper but noticeably slower in real-world game loading. Gen 5 drives in 2230 format are still rare and expensive, with minimal real-world benefit in a handheld where the rest of the system is the bottleneck.

If you have a Steam Deck LCD (Gen 3 slot), a Gen 4 drive still works — it just runs at Gen 3 speeds. But if you ever upgrade to an OLED model or a different handheld, the drive will run at full speed. Future-proofing for a few dollars more is worth it.

Capacity: 1TB Is the New Baseline

Here's a realistic look at how far each capacity gets you:

512GB — Room for 5–8 AAA games plus the OS. Workable if you regularly rotate installs.
1TB — The sweet spot. 12–15 AAA games comfortably, with room for indie titles and media. This is where most users land.
2TB — For collectors who want their full library installed. Eliminates storage management entirely.

Thermal management: worth the extra step

Handheld PCs pack their components into extremely tight enclosures. An SSD generating excessive heat can throttle its own performance and raise internal temperatures that affect the CPU, GPU, and battery longevity.

Most 2230 SSDs — including the ON1000T — ship without a built-in heatsink, which is normal for this form factor. For optimal thermal performance, we recommend pairing your new SSD with a third-party 2230 thermal pad (available for under $10 on Amazon). These slim graphite or copper pads add less than 1mm of thickness and make a measurable difference in sustained load temperatures.

OSCOO ON1000T: Built for Handhelds

We designed the ON1000T specifically for the M.2 2230 market — not as a cut-down version of a larger drive, but as a purpose-built compact SSD.

Specs at a glance:

Specification	OSCOO ON1000T
Form Factor	M.2 2230
Interface	PCIe Gen 4 × 4, NVMe 1.4
Sequential Read	Up to 5,200 MB/s
Sequential Write	Up to 4,800 MB/s
NAND	3D TLC
Layout	Single-sided
Thermal Solution	Compatible with third-party 2230 thermal pads (recommended)
Capacities	512GB / 1TB / 2TB
Warranty	3 years

Our Benchmark Results

We installed the ON1000T 1TB in a Steam Deck OLED and ran a series of tests. Here's what we found.

Game Load Time: ON1000T vs. MicroSD Card

Many Steam Deck owners store games on a MicroSD card to save internal SSD space. We tested how much time you actually lose by doing that — and whether upgrading the internal SSD changes the equation.

All tests were performed on a Steam Deck OLED. We measured the time from selecting "Continue" on the main menu to full gameplay control, averaged over three runs.

Game	MicroSD Card	OSCOO ON1000T	Time Saved
Cyberpunk 2077	40 sec	12 sec	28 sec (70% faster)
Baldur's Gate 3	55 sec	20 sec	35 sec (64% faster)
No Man's Sky	1 min 36 sec	57 sec	39 sec (41% faster)

The difference is most dramatic in Cyberpunk 2077 — what takes 40 seconds on a MicroSD card loads in just 12 seconds on the ON1000T. That's not a benchmark number you'll forget after the first fast-travel.

These gaps compound over a play session. If a game loads 10 times during an hour of play, you're saving 3–6 minutes per session. Over weeks and months, that's hours of your life spent playing instead of waiting.

Temperature Under Load:

We paired the ON1000T with a third-party 2230 thermal pad and monitored SSD temperature during a 30-minute Cyberpunk 2077 session using smartctl in Desktop Mode.

State	Temperature
Idle	30°C
Sustained gaming load	50–60°C

The ON1000T stays well within the standard NVMe operating range of 0–70°C throughout. Thermal throttling on most NVMe SSDs kicks in around 70–80°C — with a simple thermal pad, the ON1000T never comes close. No throttling was observed at any point during our testing.

We recommend picking up a 2230 thermal pad ($5–10 on Amazon) whenever you upgrade. It's cheap insurance for long-term performance and drive longevity.

Step-by-Step: Upgrading Your Steam Deck SSD

The Steam Deck (both LCD and OLED) is the most popular handheld to upgrade, and one of the easiest. Here's the complete process.

What You'll Need

OSCOO ON1000T M.2 2230 SSD (your chosen capacity)
Phillips #1 screwdriver (for LCD model) or Phillips #0 (for some OLED screws)
A plastic pry tool or guitar pick
Tweezers
A USB-C flash drive (8GB+) for SteamOS recovery
An anti-static wrist strap (recommended but optional)

Before You Start

Back up your game saves. Go to Settings → Storage → check that Steam Cloud Sync is enabled for your games. For games without cloud save, manually back up save files via Desktop Mode.
Prepare the SteamOS recovery drive. Download the SteamOS recovery image from Valve's official page and flash it to a USB-C drive using Rufus (Windows) or Balena Etcher (Mac/Linux).
Discharge the battery below 25%. This is a safety precaution — a charged lithium-ion battery is dangerous if you accidentally puncture it during disassembly.

Disassembly

Step 1: Power off the Steam Deck completely (not sleep mode — hold the power button and select "Shut Down").

Step 2: Remove the 8 Phillips screws on the back cover. The four center screws are shorter than the four corner screws — keep them separated.

Step 3: Use a plastic pry tool to gently separate the back cover, starting from the top edge. Work slowly around the perimeter. You'll hear small clips releasing — that's normal.

Step 4: Locate the silver metallic shield covering the SSD area. Remove the single screw holding it in place, then carefully peel back or lift off the shield.

Step 5: Disconnect the battery. Use tweezers or a plastic pry tool to gently pull the battery connector away from the motherboard. This is critical — never work on powered electronics.

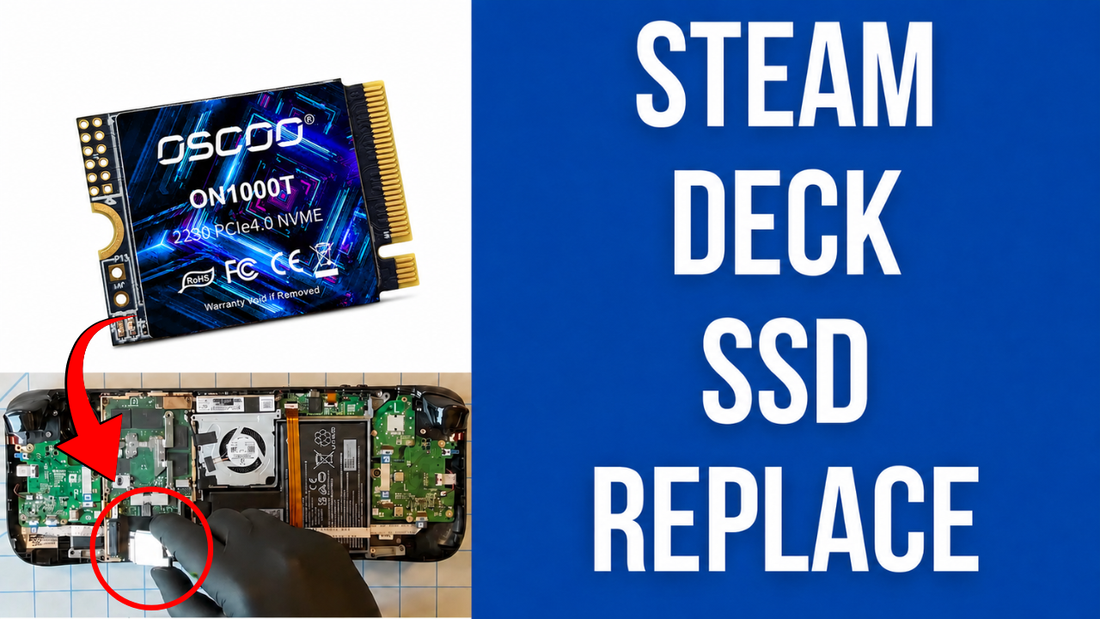

Step 6: Remove the single screw securing the SSD, then gently pull the drive out of the M.2 slot at an angle.

Installation

Step 7: If you purchased a third-party thermal pad, apply it to the top of the ON1000T now. Then transfer your old SSD's metallic EMI shield over the pad. The shield helps with electromagnetic interference and works together with the thermal pad to dissipate heat.

Step 8: Slide the ON1000T into the M.2 slot at approximately a 30° angle, then press it flat and secure it with the screw.

Step 9: Reconnect the battery cable.

Step 10: Replace the SSD shield, then snap the back cover on and replace all 8 screws (shorter screws in center positions).

Software Setup

Step 11: Plug in your SteamOS recovery USB drive and power on the Steam Deck while holding the Volume Down button. Select "Boot from USB" in the boot menu.

Step 12: Once the recovery environment loads, select "Re-image Steam Deck" to perform a clean SteamOS installation on the new SSD.

Step 13: Follow the on-screen setup. Your Steam Deck may not register button, thumbstick, or touchpad inputs initially — this is normal. Use the touchscreen to complete initial setup, allow updates to download, and restart. Input should return after the first reboot.

Step 14: Log into your Steam account. Your games will re-download, and cloud saves will sync automatically.

The Whole Process in Numbers

Step	Time
Preparation (backup + recovery drive)	~15 minutes
Disassembly	~10 minutes
SSD swap	~2 minutes
Reassembly	~8 minutes
SteamOS recovery + setup	~15 minutes
Total	~50 minutes

First-timers should budget about an hour. If you've done it before, 30 minutes is realistic.

Quick Notes for Other Handhelds

ASUS ROG Ally / ROG Ally X / ROG Xbox Ally

The process is very similar to the Steam Deck: remove the back cover screws, disconnect the battery, swap the 2230 SSD, and reassemble. ROG handhelds run Windows, so you'll need a Windows installation USB drive instead of SteamOS recovery. ASUS has designed their handhelds with upgradability in mind, so the SSD is easily accessible.

Lenovo Legion Go / Legion Go S

Same principle as the ROG Ally — accessible SSD after removing the back panel. The Legion Go runs Windows. The Legion Go S (SteamOS edition) follows the same SteamOS recovery process as the Steam Deck.

Lenovo Legion Go 2

This one is more involved. The SSD sits under the fan assembly, which is attached via a thermal plate with adhesive. You'll need to carefully remove the fan, detach the thermal plate, swap the SSD, and reattach everything. We recommend watching a teardown video specific to the Legion Go 2 before attempting this upgrade, and only proceeding if you're comfortable working with delicate ribbon cables and adhesive thermal pads.

MSI Claw

Moderately difficult. The SSD is accessible after removing the back panel, but the internal layout is more compact than the Steam Deck or ROG Ally. Take care around the ribbon cables.

Frequently Asked Questions

Can I use a 2242 or 2280 SSD in my Steam Deck?

No. The M.2 2242 is 12mm longer than the 2230, and the 2280 is 50mm longer. They will physically collide with internal components like the battery and fan. Only use an M.2 2230 SSD.

Will a Gen 4 SSD work in the Steam Deck LCD (which has a Gen 3 slot)?

Yes. PCIe is backward compatible. A Gen 4 drive like the ON1000T will work perfectly in the Steam Deck LCD — it'll just run at Gen 3 speeds (approximately 3,500 MB/s read instead of 5,200 MB/s). If you later upgrade to a Steam Deck OLED or another Gen 4 handheld, the drive will run at full speed.

Does upgrading the SSD void my warranty?

This depends on the manufacturer. Valve has been relatively permissive about Steam Deck modifications, but their official stance is that you upgrade at your own risk. ASUS ROG Ally devices are explicitly designed for user-upgradable SSDs. Check your specific device's warranty terms before proceeding.

Do I need to add a heatsink to my 2230 SSD?

A dedicated heatsink won't fit in most handhelds, but a thin 2230 thermal pad ($5–10) is highly recommended. It reduces SSD temperature by several degrees under load, helping prevent throttling during long gaming sessions. When you swap SSDs, also transfer the original drive's EMI shield to the new drive — it doubles as a thermal spreader.

Can I clone my old SSD instead of doing a clean install?

Technically yes, using tools like Clonezilla, but a clean install is recommended. SteamOS recovery is fast and reliable, and your game saves sync from the cloud. Cloning can introduce partition alignment issues, especially when moving to a larger drive.

What about using a MicroSD card instead?

MicroSD cards are fine for media storage and indie games that aren't load-time sensitive. But for AAA titles, the speed difference is dramatic — internal NVMe can be 5–10× faster than even the fastest MicroSD cards. For the best experience, use the internal SSD for demanding games and reserve MicroSD for everything else.

The Bottom Line

Upgrading your handheld gaming PC's SSD is one of the highest-value modifications you can make. For a fraction of the cost of buying the higher-capacity SKU, you get more storage, potentially faster speeds, and a device that stays useful for years longer.

The cheapest device is the one you already own. Give it the storage it deserves.
